Ojales obturadores

Sealing (blanking) plug

Too many results? Please filter your selection list according to your needs.

Nominal size

Your selection

Panel hole size

Your selection

Inner Ø

Your selection

Panel thickness

Your selection

Total Ø

Your selection

Total height

Your selection

Membrane thickness

Your selection

Productfilter

previous 1 / 3 next

Sealing (blanking) plug - Shape 1

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Download the datasheeht as PDF

Article
No.

Nominal
size

Hole Ø

Panel
thickness

Inner Ø

Total Ø

Total
height

Membrane
thickness

Material /
Color

Select
sample

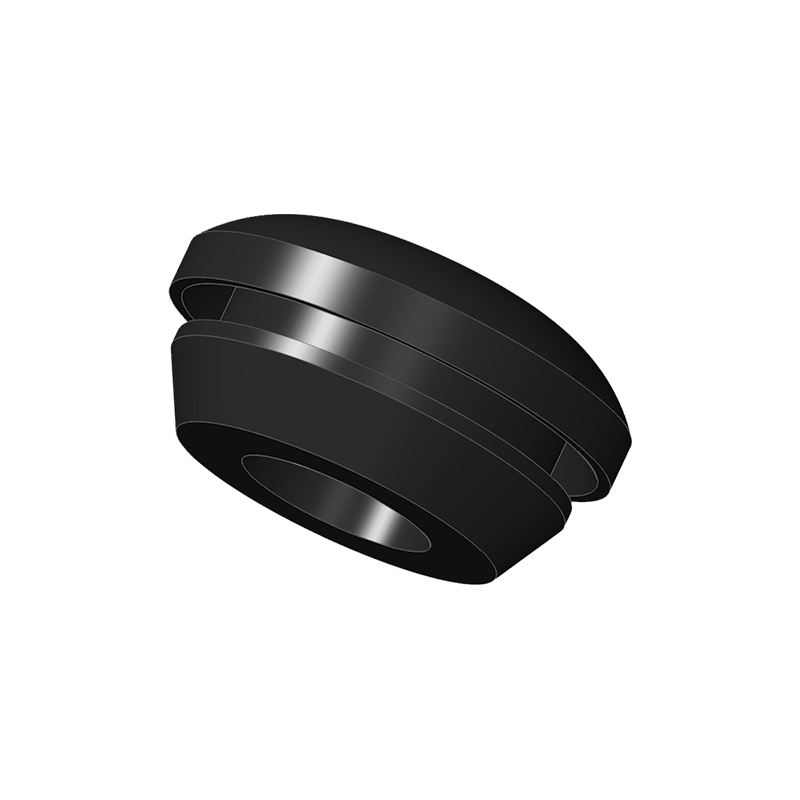

1550

M 10

10,5

1 - 2,5

6,0

14,5

7,3

2,0

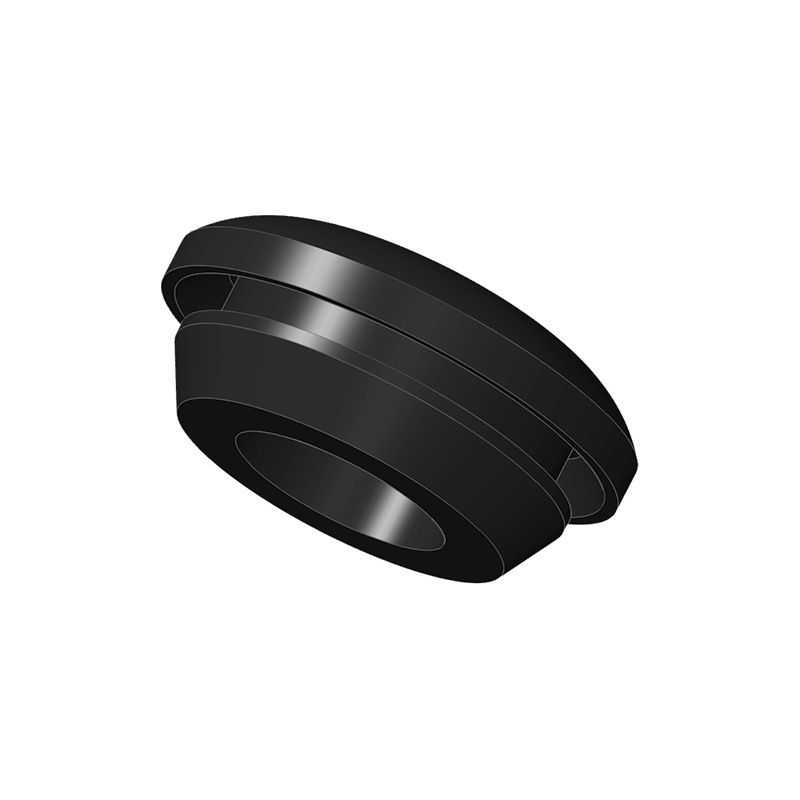

1551

M 12

12,5

1 - 2,5

8,0

17,5

7,3

2,0

1552

M 16

16,5

1 - 2,5

12,0

21,0

7,5

2,0

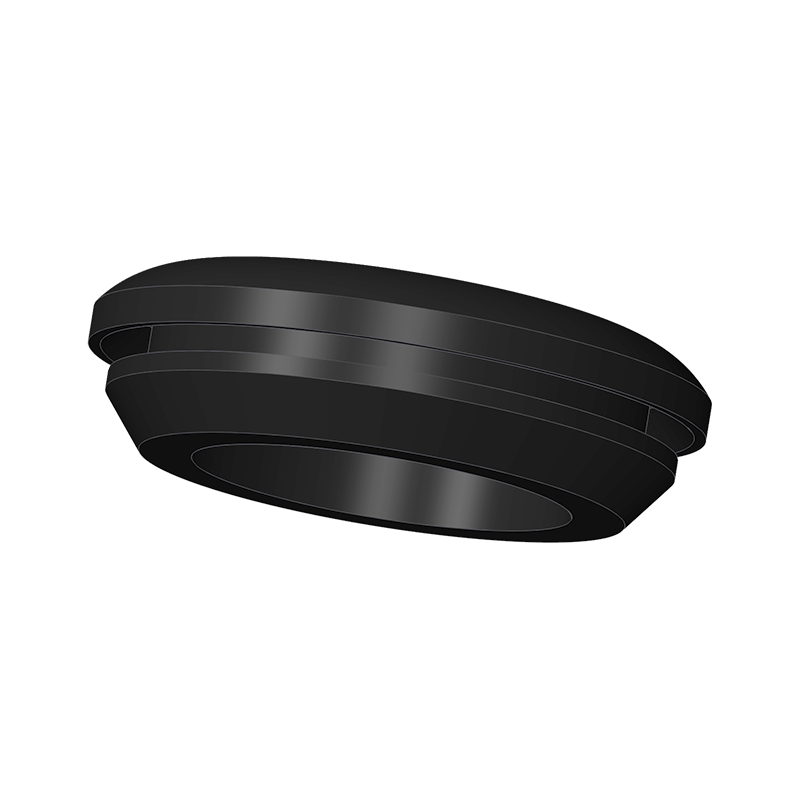

1553

M 20

20,5

1 - 2,5

15,5

26,0

7,7

2,5

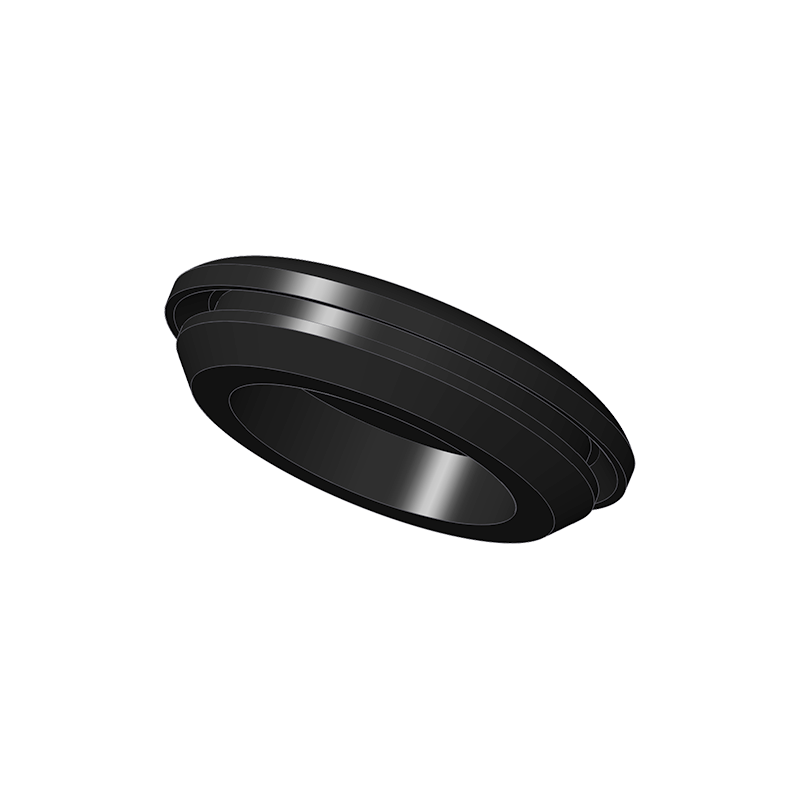

1554

M 25

25,5

1 - 2,5

19,5

32,0

7,7

3,0

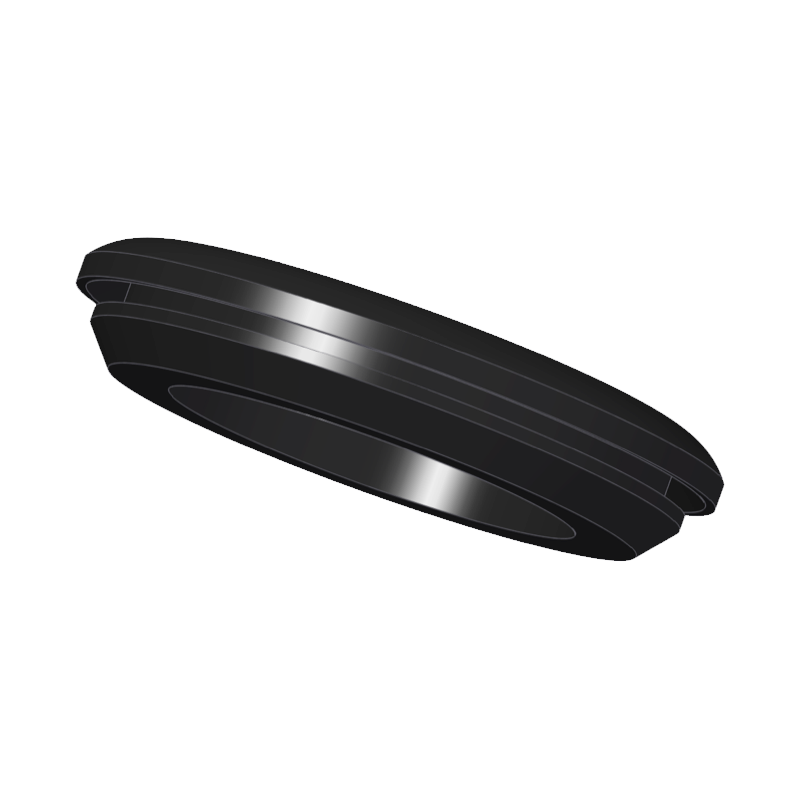

1555

M 32

32,5

1 - 2,5

24,5

39,0

7,5

3,0

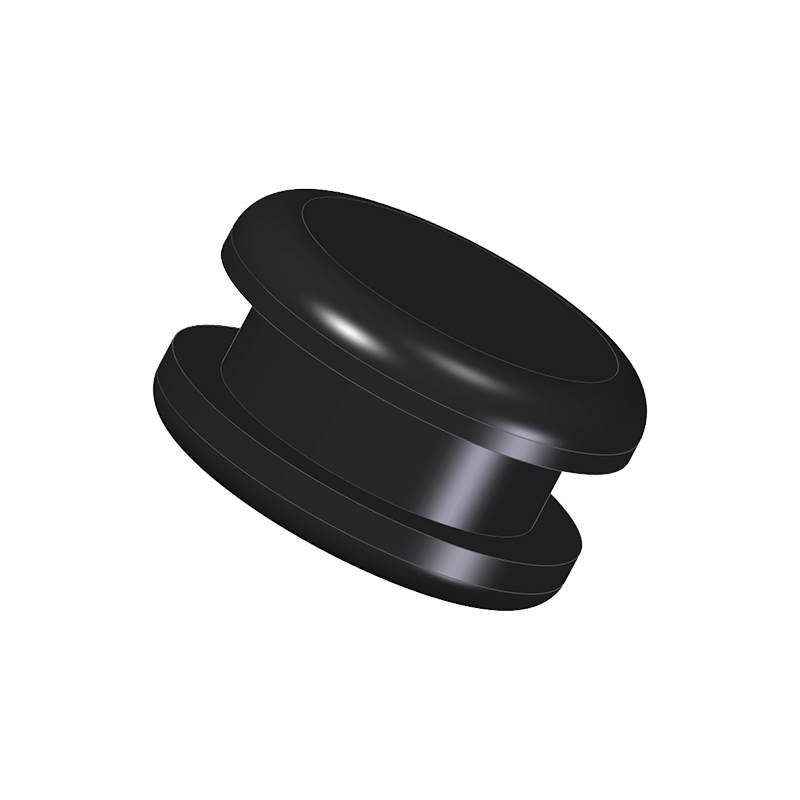

1052

10,0

3,0

5,9

13,0

7,2

0,9

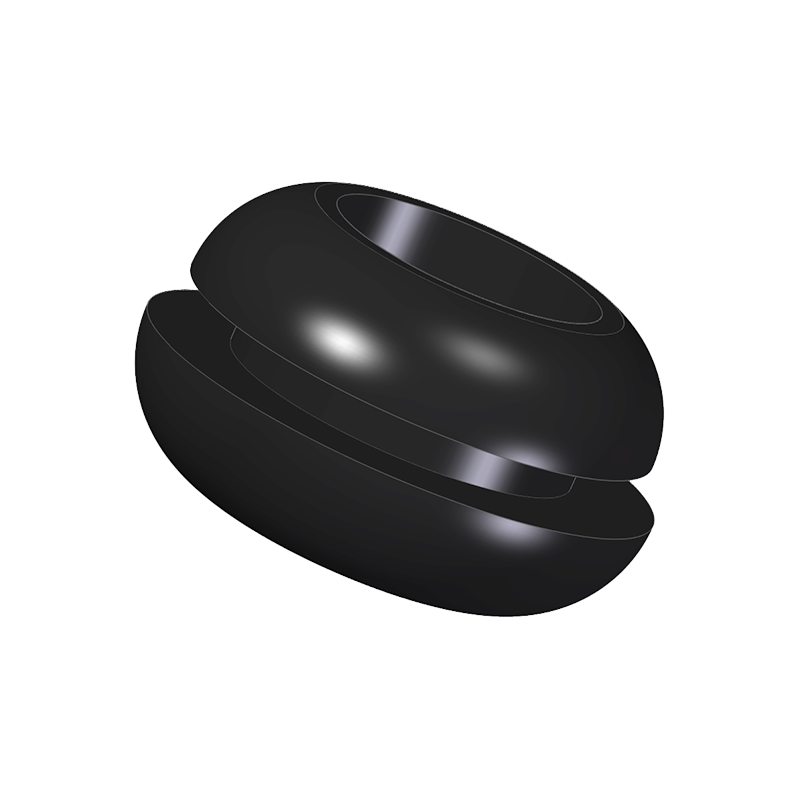

1074

10,0

1,5

7,8

15,0

8,5

2,0

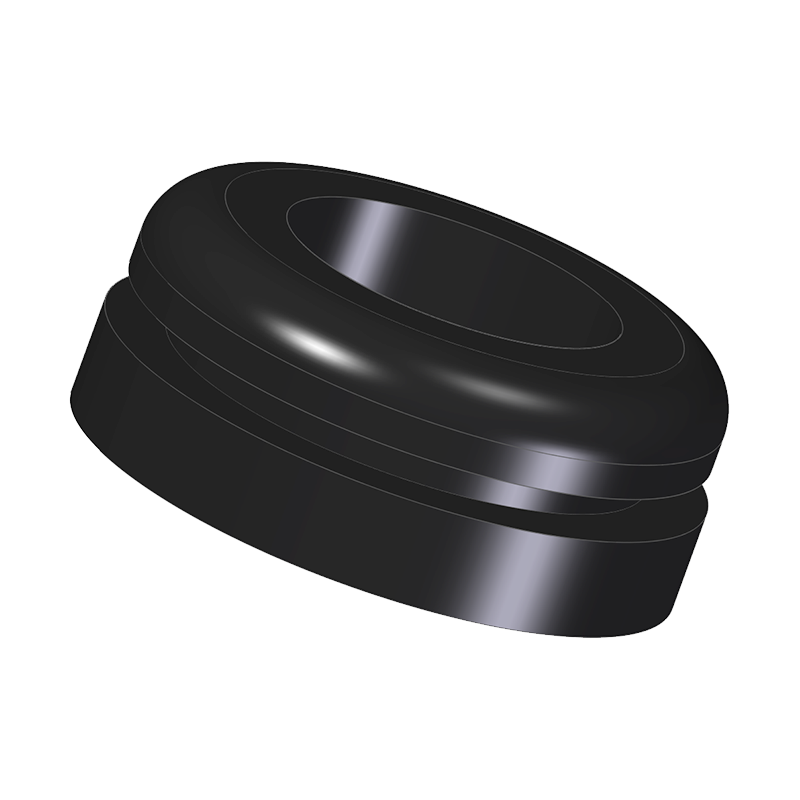

1018

13,8

1,2

9,7

17,5

7,0

0,1

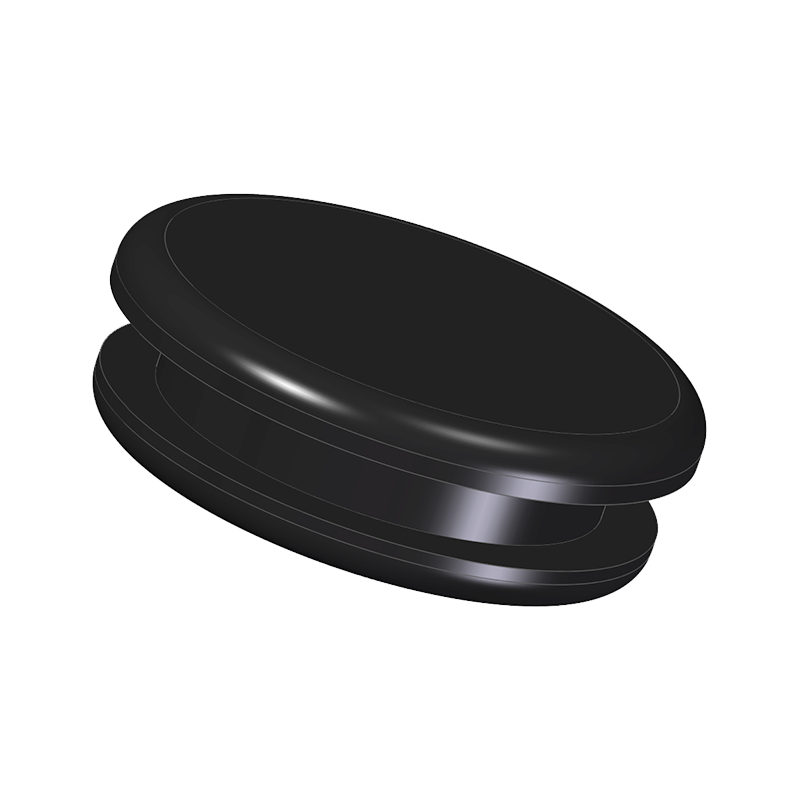

1070

16,0

2,8

12,0

21,0

6,6

1,4

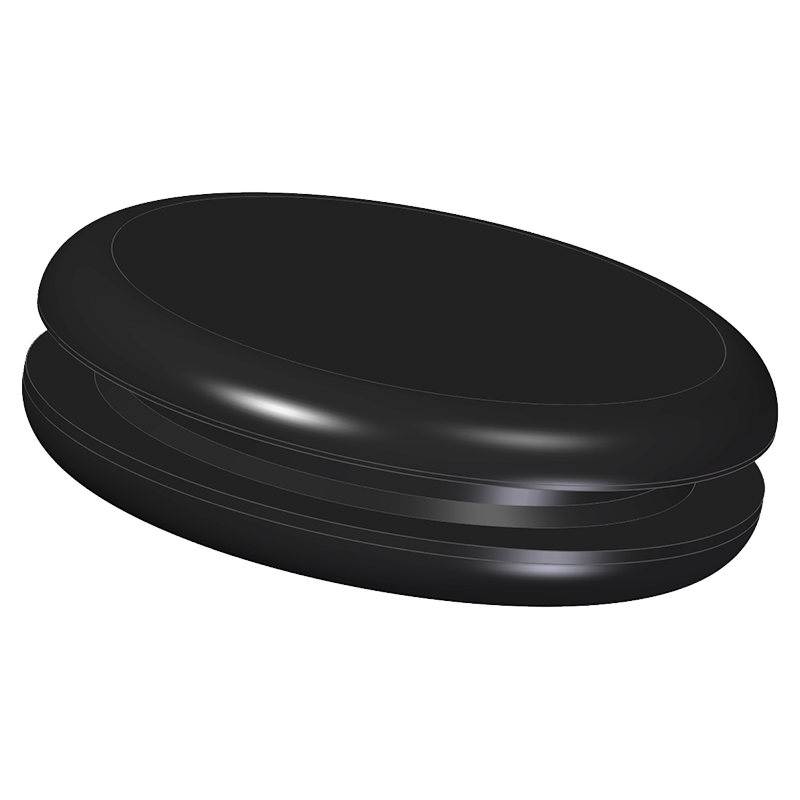

1061

18,2

2,0

13,7

23,7

6,5

0,7

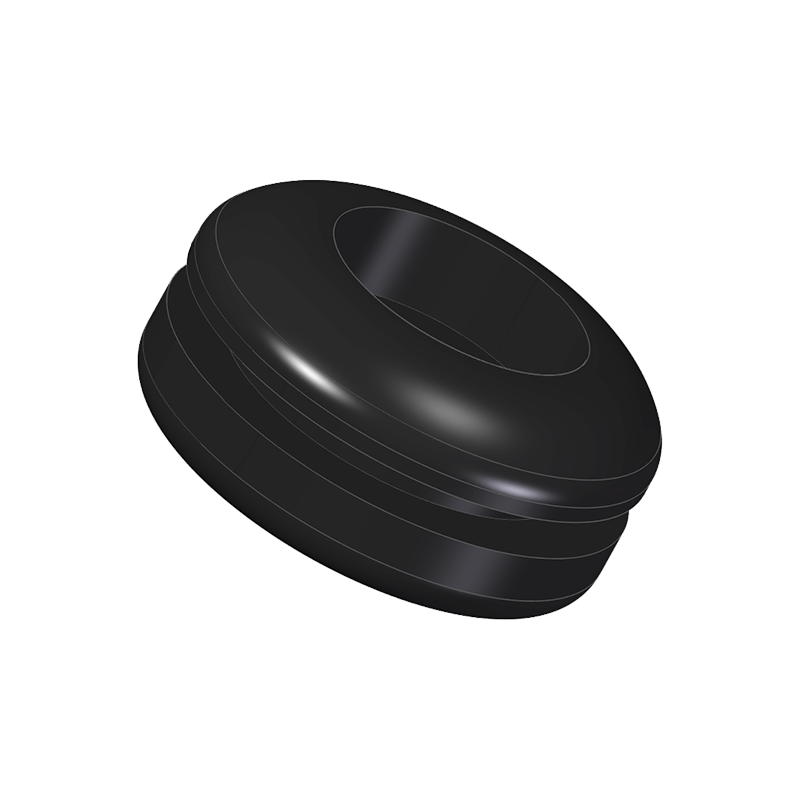

1060

13,0

1,5

9,5

17,3

8,0

0,6

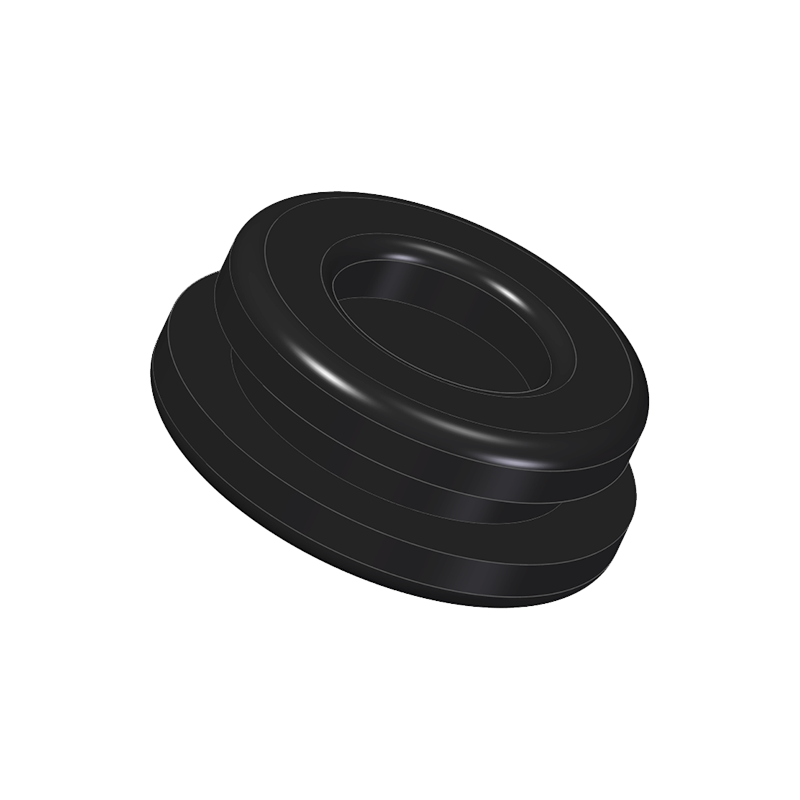

1032

13,7

2,0

8,8

18,8

7,0

1,0

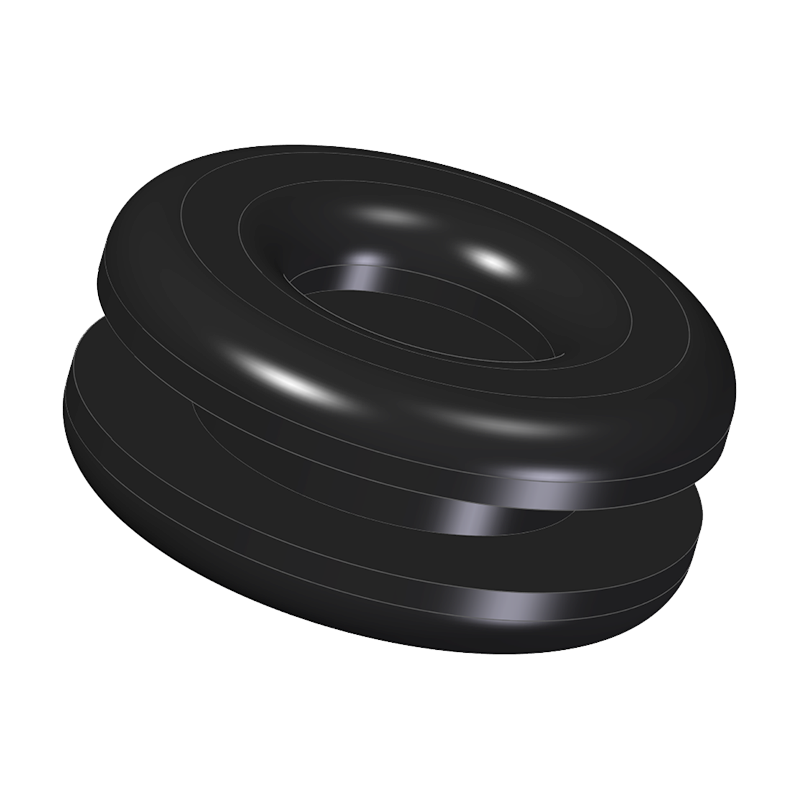

1042

13,0

2,7

9,0

20,8

9,0

0,8

1034

18,5

1,7

11,0

23,0

7,0

0,8

EB = EPDM, black
